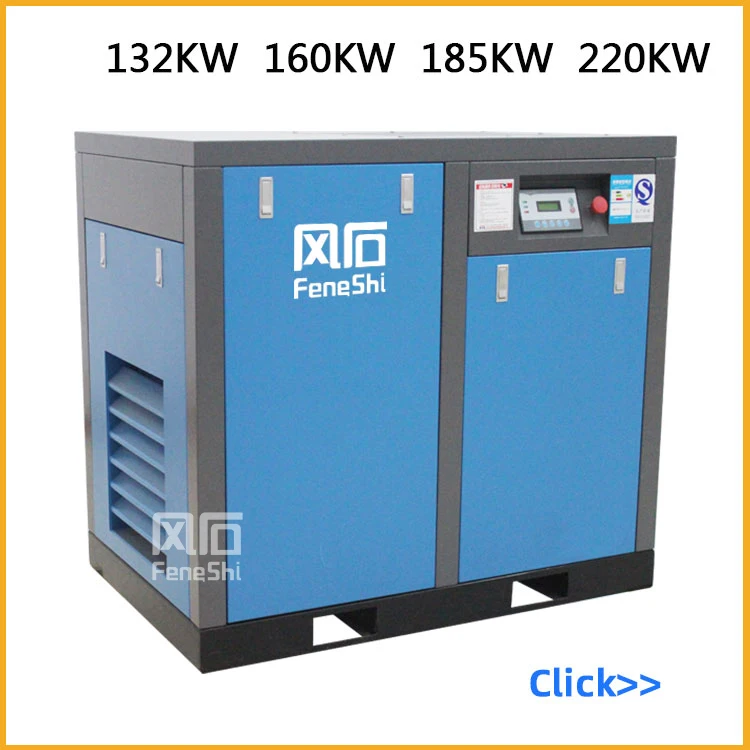

Fengshi Aircompressor 132kw 160kw 185kw 220kw Air Screw Compressor Electric Industrial air compressor pump

  • 1 - 2 Pieces
    $6,990.00
  • 3 - 4 Pieces
    $6,940.00
  • 5 - 6 Pieces
    $6,890.00
  • >=7 Pieces
    $6,840.00
Power:
132KW
Lead Time:
Quantity(Pieces) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 3 7 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces)
Air -end (Min. Order: 1 Pieces) Less
Samples:
$6,990.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Romania, Uzbekistan
Showroom Location:
Malaysia
Type:
Screw
Configuration:
Stationary
Power Source:
AC POWER
Lubrication Style:
Lubricated
Mute:
Yes
Place of Origin:
Jiangxi, China
Brand Name:
Fengshi
Voltage:
380V/415V
Dimension(L*W*H):
2600*1650*1800mm
Weight:
2600kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Free spare parts
Working Pressure:
8 bar, 13 bar, 16bar
Air capacity:
819CFM
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
2 years
Core Components:
PLC, Engine, Motor, Bearing
Horse Power:
175 HP
Power frequency:
50 HZ/60 HZ
Compressor Technology:
Screw Compressor
Model Name /Number:
FS 175
Air Tank Capacity:
387 L/s
Discharge Volume:
23.2 m3/min
Air Displacement:
819 CFM
Compressor Noise Level (Db):
67 Db
Max.Working Pressure:
8 bar/10 bar (Work Place Full Feature)
Installed Motor Power:
175 HP
Product Certification certification
CE Certified.
Valid from 2017-06-20 until 2022-06-20
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Export standard wooden box
Port
Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 3 7 15 To be negotiated
Video Description
Product Description
Name
Power Frequency Screw Air Compressor
Model
FS-175A
Power
132 KW / 175 HP
Pressure
0.8 Mpa / 8 bar / 115 psi
Flow
23.2 m3/min / 387 L/s / 819 CFM
Size
2600*1650*1800mm
Weight
2600kg
Technical Parameters of 7.5 KW-400 KW Screw Air Compressor
Model       Click On



Motor
Power

KW
Exhaust Volume

Working Pressure
(8 bar / 115 psi)

Air Tank Capacity


Size
(H*L*W)

mm


Weight


Kg
Power Frequency
Permanent Magnet Frequency Conversion
7.5 KW
1.20 m3/min
920*650*900
240 Kg
11 KW
1.65 m3/min
1100*750*1050
300 Kg
15 KW
2.35 m3/min
1100*750*1050
340 Kg
18.5 KW
3.10 m3/min
1350*870*1120
550 Kg
22 KW
3.62 m3/min
1350*870*1120
550 Kg
30 KW
5.00 m3/min
1350*870*1120
580 Kg
37 KW
6.50 m3/min
1500*1000*1300
700 Kg
45 KW
8.20 m3/min
1500*1000*1300
800 Kg
55 KW
9.80 m3/min
1850*1300*1550
1200 Kg
75 KW
13.5 m3/min
1850*1300*1550
1500 Kg
90 KW
15.5 m3/min
2350*1650*1800
1850 Kg
110 KW
19.7 m3/min
2600*1650*1800
1900 Kg
132 KW
23.2 m3/min
2600*1650*1800
2600 Kg
160 KW
27.6 m3/min
2900*1800*2000
4100 Kg
185 KW
30.0 m3/min
2900*1800*2000
4120 Kg
200 KW
33.0 m3/min
2900*1800*2000
4180 Kg
220 KW
40.0 m3/min
3520*2290*2030
6000 Kg
250 KW
45.5 m3/min
3520*2290*2030
6000 Kg
280 KW
51.5 m3/min
4200*2300*2300
7000 Kg
315 KW
57.5 m3/min
4200*2300*2300
9000 Kg
350 KW
63.0 m3/min
5300*2300*2300
9000 Kg
400 KW
70.5 m3/min
5300*2300*2300
10000 Kg
Product Details Show
Show Details

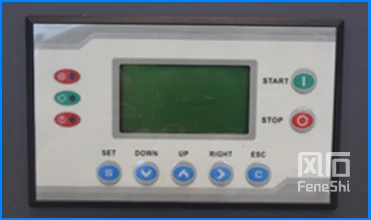

01 Intelligent  Controller

The Screw air compressor intelligent controller of Chinese & English interface supervises the operation of the compressor in real time.
Its auto warning protection function solves the problems of short-circuit,missing phase,overload or else.If the abnormal condition exits after checking the multi-point
temperature and pressure,it will alarm and shut down automatically.Screw Air Compressor up-time and state is recorded to remind the equipment to make a repair and maintain.

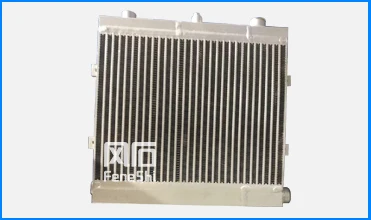

02 Screw Compressors Cooler

A huge design of cooler volume to pressured air discharge 35% margin.As a result, Screw air compressor can operate at high temperature and avoid the phenomenon of carbon deposit caused by the high temperature of the screw compressor.

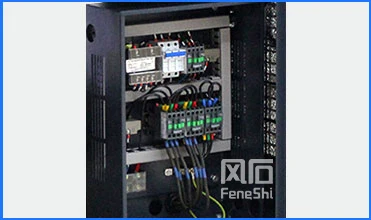

03 Electrical Components

The air screw compressors electrical components are made by the world famous brands,Schneider and Siemens which use silver contact to make it possible to operate more thanthree million times and ensure the longtermuse safety.


04 Screw Host

 The screw air compressor host is from a famous brand of European which determined the excellent performance of the machine as a "strong heart'.  According to the user's requirements, we can customize different specifications of "Screw Host" and assembly,For example:GHH, RC,Hanbell,BSC. Delivery time only needs 15-20 days

05 Screw Compressor Inlet Valve

Small power air compressor,Big power screw air compressor,Adopt different specifications to improve efficiency and reduce failure rate.None is easily damaged with an ON-OFF regulation and the adjusting range of tidal volume is 0 to 100%.It has small pressure loss and long operating life.At present,it is the most effective and reliable adjusting method of intake.


06 Main Motor

The screw air compressor motor adopts triphase high performance motor made by a famous brand with IP54 PROTECTION LEVEL,F insulation level and"SKF"heavy-duty bearing.The transmission efficiency up to 95%,whit good thermo-stability and long lifetime.

Customized Compressor
Custom Air Compressor Air-end: RC,GHH,Hanbell... Color, Appearance, Electrical appliance, Frequency converter, Motor...

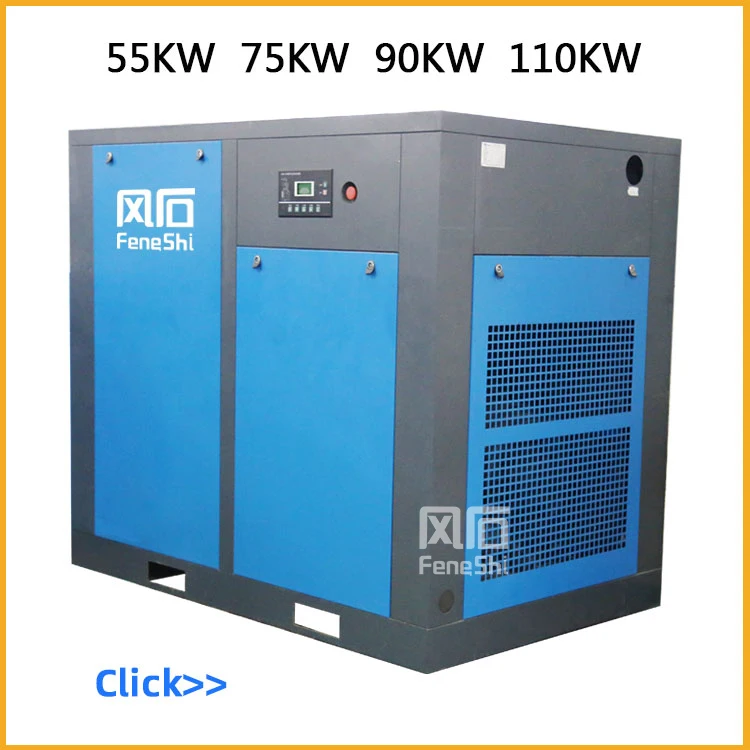

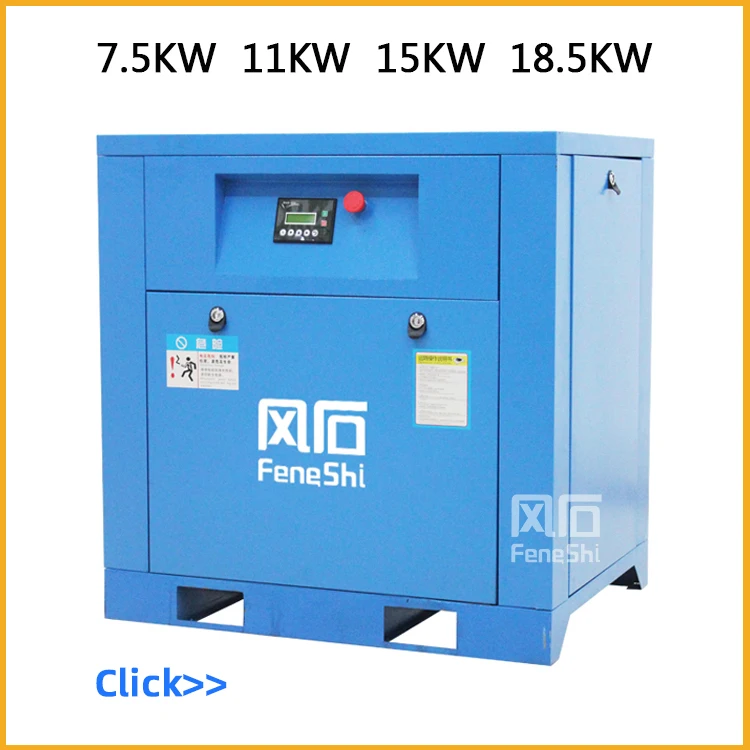

Other models
